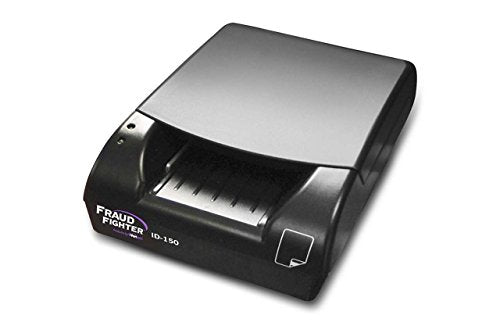

The Acuant ID-150 is a high-performance ID scanner designed to provide fast, accurate, and secure verification of government-issued identity documents from around the world. Engineered for demanding environments, the ID-150 offers exceptional image quality, fast scanning speeds, and robust durability — making it ideal for hotels, banks, healthcare facilities, and more.

Key Features:

• Global ID Verification: Quickly verifies driver's licenses from all 50 U.S. states, military IDs, alien registration cards, and international documents.
• High-Resolution Imaging: Captures clear, detailed images at 600 dpi, ensuring precision in text and image recognition.
• Duplex Scanning Technology: Scans both sides of an ID in a single pass, saving time and improving workflow efficiency.
• Fast Scan Speed: Completes a full scan in 6 seconds or less, ideal for high-traffic environments.
• Compact & Durable Design: Built for continuous, reliable performance in high-use applications and demanding environments.

Technical Specifications:

• ID Card Size Compatibility:

  • Width: 53.5 - 54.9mm (ISO 53.92 - 54.18mm)
  • Length: 85 - 86mm (ISO 85.47 - 85.90mm)
  • Thickness: 0.4 - 1.0mm (ISO 0.68 - 0.84mm)

• Illumination:

  • Front: RGB (470/530/620nm)
  • Rear: RGB (465/520/630nm)
  • Near-Infrared (NIR): 880nm

• Image Sensor:

  • Front: Color/NIR CIS
  • Rear: Color CIS

• Scan Width: 54mm

• Resolution: 600 dpi

• Color Depth: 24-bit RGB color, 8-bit grayscale (NIR)

• Scan Speed: 42mm/sec @ 600 dpi

• Magnetic Stripe Reader:

  • Track: ISO 7811 3 Track, US/Canada Driver License format (AAMVA)

• Interface Type: USB 2.0 High-Speed (480 Mbps)

• Dimensions: 118W x 169D x 71H (mm)

• Weight: 750g (1.65 lb)

• Power Input: DC 12V, 1.0A

• Operating Environment: 0-50°C; 1-90% RH, non-condensing

• Storage Environment: -20-70°C; 5-95% RH, non-condensing

Certifications & Compliance:

• FCC Part 15 Compliant – Ensures minimal interference and smooth operation.
• Certifications: CUL, CE, C-Tick

Warranty & Support:

• Includes 12 Months Warranty for added reliability.
